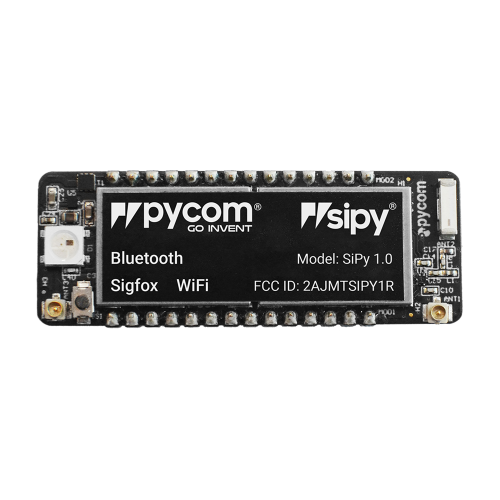

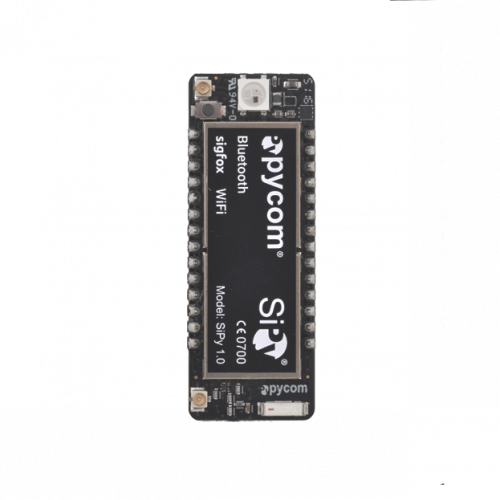

SiPy

The SiPy is a multi-network (Sigfox, WiFi and BLE) development platform. It is programmable with MicroPython and the Pymakr IDE for fast IoT application development, easy programming in-field and extra resilience with network failover. The best blend of speed to deployment and access to new LPWAN networks rolling out across Europe, USA, Africa and India. You can also configure the SiPy in FSK mode to send packets directly from SiPy to SiPy. This way you can create the network configuration of your choice and then use another SiPy as central Nano-Gateway to forward the data to the cloud via WiFi. Our module is CE, FCC, IC and RCM certified!

NOTE: SIGFOX CONNECTIVITY IS INCLUDED FOR 12 MONTHS FROM FIRST USE OF DEVICE FOR DEVELOPMENT UNITS. THIS DOES NOT INCLUDE LARGER DEPLOYMENTS/COMMERCIAL USE WHERE A PAYABLE SERVICE WILL BE REQUIRED. CONTACT PYCOM FOR PRICING

NOTE: Using the Sigfox radio without the external antenna can lead to damage of the device and is therefore not recommended.

If you are purchasing the SiPy and wish to connect via USB to your computer, you will also need to purchase either the Expansion Board 3.0, Pysense or Pytrack.

SiPy Features
Powerful CPU, BLE and state of the art WiFi radio
1KM WiFi range
MicroPython enabled
Fits in a standard breadboard (with headers)
Ultra-low power usage: a fraction compared to other connected micro controllers

Processing
Espressif ESP32 chipset
Dual processor and WiFi radio system on chip
Network processor handles the WiFi connectivity and the IPv6 stack
Main processor is entirely free to run the user application
An extra ULP-coprocessor that can monitor GPIOs, the ADC channels and control most of the internal peripherals during deep-sleep mode while only consuming 25uA
Sigfox Operating Frequencies
RCZ1 – 868MHz (Europe)
RCZ2 – 902MHz (US, Canada and Mexico)
RCZ3 – (Japan and Korea)
RCZ4 – 920-922MHz (ANZ, Latin America and S-E Asia)

Interfaces
2 x UART, 2 x SPI, I2C, I2S, micro SD card
Analog channels: 8_12 bit ADCs
Timers: 4_16 bit with PWM and input capture
DMA on all peripherals
GPIO: Up to 24
Hash / Encryption
SHA, MD5, DES, AES
WiFi Networking
802.11b/g/n 16mbps

Bluetooth
Low energy and classic

RTC
Running at 32KHz

Range
Node range: Up to 50km
Security & Certifications
SSL/TLS support
WPA Enterprise security
AES encryption engine

Memory
RAM: 512kb
Flash Memory: 4MB
GPIO: Up to 24
Hardware floating point acceleration
Python multi-threading

Sigfox Specification
TI CC1125NarrowbandTransceiver
Class 0 device. Maximum Tx power:

• 14dBm (Europe)
• 22dBm (America)
• 22dBm (Australia and New Zealand)

Node range: Up to 50km
Sigfox certified

Power
Voltage Input: 3.3V  5.5V
3v3 output apable of sourcing up to 400mA
WiFi: 12mA in active mode, 5uA in standy
Sigfox (Europe): 17mA in Rx mode, 47mA in Tx mode and 0.5uA in standby
Sigfox (Australia, New Zealand and South America): 24mA in Rx mode, 257 mA in Tx mode and 0.5uA in standby

Size
55mm x 20mm x 3.5mm (Without Headers)
