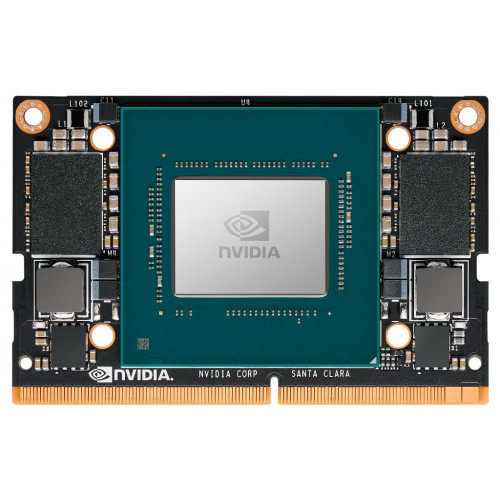

NVIDIA Jetson Xavier NX Module 16GB

Product Code: Xavier NX Module-16GB

NVIDIA Jetson Xavier NX Module 16GB
Brand: Nvidia

₹56,719.00
GST inclusive



Qty:

Availability: 1 In Stock


Add to Wish List



Product Description :
Jetson Xavier NX delivers up to 21 TOPS for running modern AI workloads, consumes as little as 10 watts of power, and has a compact form factor smaller than a credit card. It can run modern neural networks in parallel and process data from multiple high-resolution sensors, opening the door for embedded and edge computing devices that demand increased performance but are constrained by size, weight, and power budgets.
Technical Specifications :

Model Nvidia Jetson Xavier NX
AI Performance 21 TOPS (INT8)
GPU 384-core NVIDIA Volta™ GPU with 48 Tensor Cores
CPU 6-core NVIDIA Carmel ARM®v8.2 64-bit CPU
6MB L2 + 4MB L3
CPU Max Freq 2-core @ 1900MHz
4/6-core @ 1400Mhz
Memory 16 GB 128-bit LPDDR4x @ 1866 MHz
59.7GB/s
Storage 16 GB eMMC 5.1
Power 10W|15W|20W
PCIe 1 x1 + 1x4
(PCIe Gen3, Root Port & Endpoint)
CSI Camera Up to 6 cameras (36 via virtual channels)
14 lanes MIPI CSI-2
D-PHY 1.2 (up to 30 Gbps)
Video Encode 2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.265)
2x 4K60 | 4x 4K30 | 10x 1080p60 | 20x 108p30 (H.264)
Video Decode 2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265)
2x 4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264)
Display 2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0
DL Accelerator 2x NVDLA Engines
Vision Accelerator 2x PVA
Networking 10/100/1000 BASE-T Ethernet
Mechanical 45 mm x 69.6 mm
260-pin SO-DIMM connector
