Pressure click
Product Code: MIKROE-1422

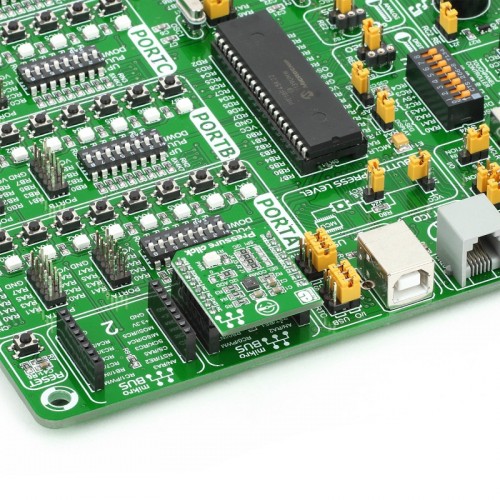

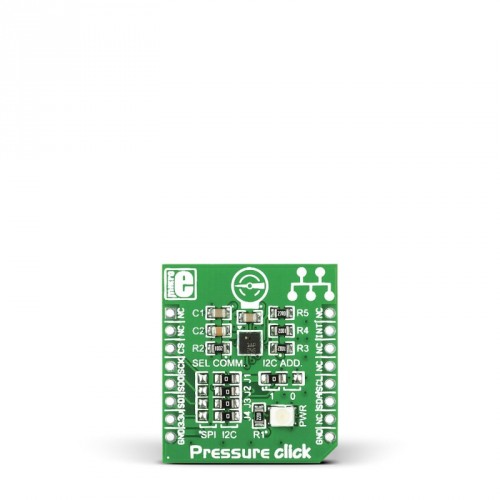

Pressure Click is a compact and easy solution for adding pressure measurement to your design. It features LPS331AP digital output pressure sensor. LPS331AP IC is an ultra compact absolute piezoresistive pressure sensor capable to measure pressure (260-1260 mbar) or temperature (-40°C to 80°C) and provide a digital signal to main board microcontroller. Pressure Click communicates with the target board microcontroller via mikroBUS SPI (MOSI, MISO, SCK, CS), I2C (SDA, SCL) and INT lines. The board is designed to use 3.3V power supply only.
Specification
| Type | Pressure,Altitude |
| Applications | This board is ideal for indor and outdor navigations, altimeter or barometer for portable devices, weather station equipment, sport watches and many more |
| On-board modules | LPS331AP digital output pressure sensor |
| Key Features | 260 to 1260 mbar absolute pressure range. High-resolution mode: 0.020 mbar RMS. High overpressure capability: 20x full scale |
| Key Benefits | Low power consumption:Low resolution mode: 5.5 μAHigh resolution mode: 30 μA |
| Interface | SPI,GPIO,I2C |
| Input Voltage | 3.3V |
| Compatibility | mikroBUS |

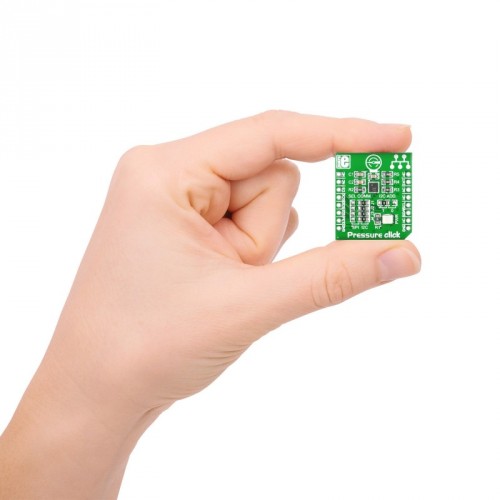

| Click board size | S (28.6 x 25.4 mm) |
