RS485 Isolator click

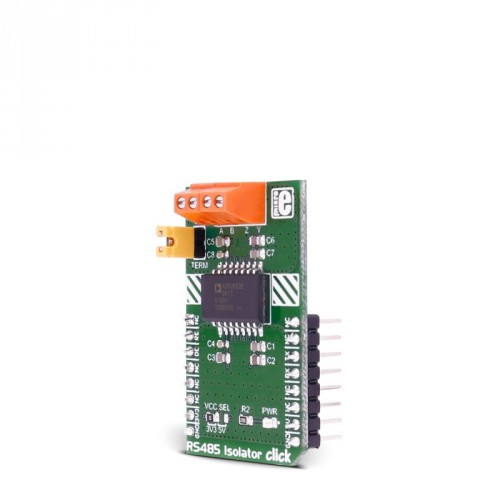

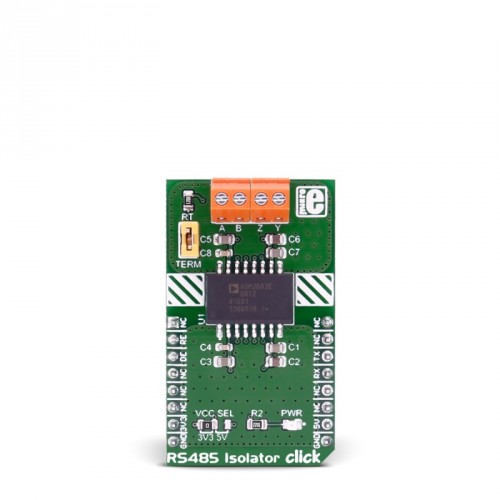

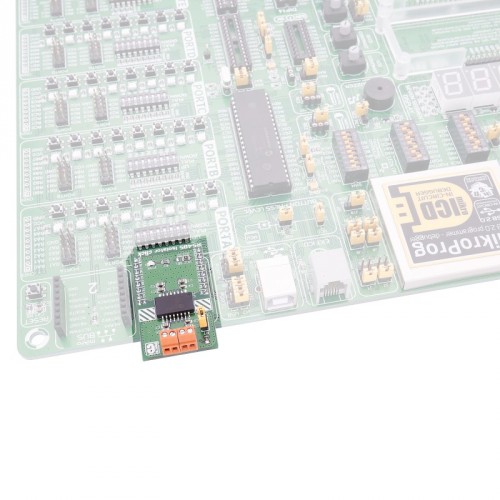

RS485 Isolator click is a RS485 communication isolator, and carries the ADM2682EBRIZ, a 5 kV rms signal and power isolated RS-485 transceiver. The click is designed to run on either 3.3V or 5V power supply. It communicates with the target microcontroller over UART interface, with additional functionality provided by the RST and CS pin on the mikroBUS™ line.



Use the click for isolating RS485 communication, and preventing voltage spikes from destroying sensitive equipment.

ADM2682EBRIZ transceiver features

The ADM2682EBRIZ is a fully integrated 5 kV rms signal and power isolated data transceiver with ±15 kV ESD protection that is suitable for high speed communication on multipoint transmission lines. The ADM2682EBRIZ includes an integrated 5 kV rms isolated dc-to-dc power supply that eliminates the need for an external dc-to-dc isolation block.

Specifications

Pinout diagram

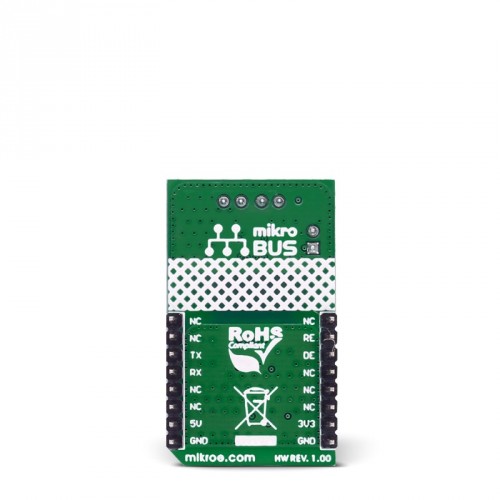

This table shows how the pinout on RS485 Isolator click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

Notes	Pin					Pin	Notes
	NC	1	AN	PWM	16	NC
Receiver enable	RE	2	RST	INT	15	NC
Driver enable	DE	3	CS	TX	14	RXD	Receiver Output Data
	NC	4	SCK	RX	13	TXD	Driver Input
	NC	5	MISO	SCL	12	NC
	NC	6	MOSI	SDA	11	NC
Power supply	+3.3V	7	3.3V	5V	10	+5V	Power supply
Ground	GND	8	GND	GND	9	GND	Ground

Jumpers and settings

LEDs and buttons

Downloads

 ADM2682EBRIZ datasheet

 RS485 Isolator click schematic
