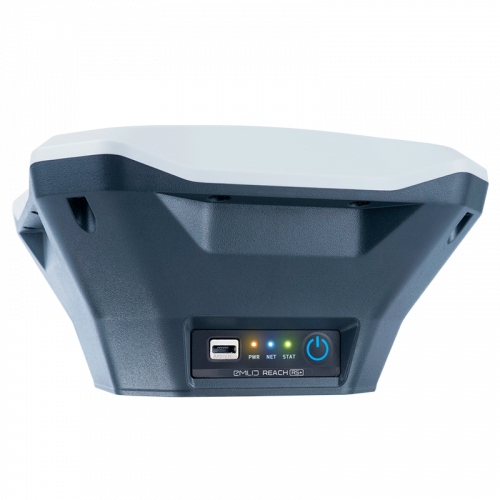

Reach RS+

RTK GNSS receiver with an app as a controller

Centimeter accuracy for surveying, mapping and data collection.

         GNSS

         GPS, GLONASS, BeiDou, Galileo, QZSS and SBAS

           Long range radio

           LoRa 868/915 MHz, range up to 8 km

      30 hours battery life

      LiFePO4 battery, 5-40V input USB charging

          Wi-Fi and Bluetooth

          To connect to your device

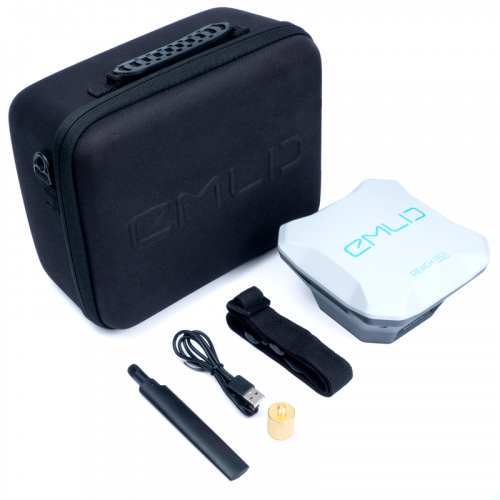

Package includes:
— Reach RS+
— Carry case with a strap
— Radio antenna
— Adapter for survey pole
— USB cable

ReachView app

Reach RS+ comes with a cross-platform app. It is hosted on Reach itself and accessed via Wi-Fi connection on any smartphone, tablet or laptop. For the best experience get it’s mobile version for iOS or Android.

   Collect points

    With Reach RS+ and ReachView you can create survey projects to manage data collection. When working in the field each point is assigned a                custom name and offset. Results can be downloaded from the project list.

    1 cm                   8 GB

   Precision             Storage

    File formats: DXF, GeoJSON, ESRI Shapefile and CSV.

Use Reach RS+ as a base station

Use Reach RS+ to set up your own base station. Stream corrections over the network via NTRIP/TCP or LoRa radio. Record base logs for post-processing.

868/915 MHz          Up to 8 km

LoRa radio              Reliable corrections

File formats: RTCM3, RINEX.

        Receive corrections data over the Internet

        You won’t always need to set up your own base station. Standalone Reach RS+ can receive corrections data over the Internet from your local                  NTRIP provider. No special devices or software are required, all you need is a smartphone.

        File formats: RTCM3, RINEX. VRS supported.

Machinery guidance

Reach RS+ is able to provide precise coordinates over Bluetooth/Wi-Fi to your tablet with a lightbar navigation app.

RS232 interface allows to connect Reach RS directly to an autosteer system.

File formats: NMEA, ERB, plain text

Compatible apps: MachineryGuide, AgriBus-Navi, Efarmer

Reach RS+ and ReachView are fully featured

ReachView app and all features are already included in price. No extra charges or subscriptions.

ReachView constantly improves and updates

Simply tap the update button to receive new features and advancements. It’s always free.

Protected from water, dust and falling

And it floats, so you don’t have to worry you might lose it in a middle of a lake

-20С…+65С                      IP67

  -4F…149F                       Water- and dustproof

  690 g                                145 x 145 x 85 mm

 1,52 lbs                             5,7 x 5,7 x 3,3 inches
