Atlas Scientific EZO-PMP Kit (BLUE)
Product Code: AS Kit-PMP Blue
The EZO-PMP™ Kit comes with:

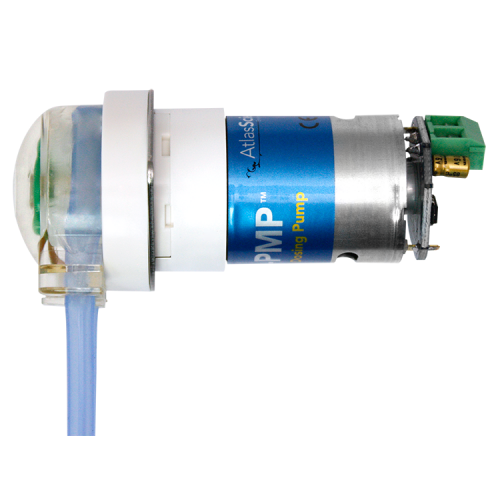

Peristaltic pump with controller, 2 x 30.48 cm long pump tubes, 2 inline tubing connectors, 12 volt power supply, power supply connector, data cable with 5 pin male header, and a 10ml graduated cylinder (for calibration).
Specification
| Flow rate | 0.5ml to 105ml/mins |
| Accuracy | +/- 1% |
| Modes of operation | Continuous dispensing |
| Volume dispensing | |
| Dose over time mode | |
| Constant flow rate | |
| Dispense at startup | |
| Connector | 5 lead data cable |
| Calibration | Single point |
| Supplied tubing | 2 x 30.48 cm |
| Tubing size | Any 5mm O.D. tubing |
| Data protocol | UART & I2C |
| Default I2C address | 103 (0x67) |
| Operating voltage | 3.3V – 5V (logic) |
| 12V – 24V (motor) | |
| Pump head | 2 meters |
| Data format | ASCII |
| Food safe | Yes |
Related Documents
Female Connector Information
Raspberry Pi Sample Code (I2C)
EZO-PMP™ - 3D model (*.step)
