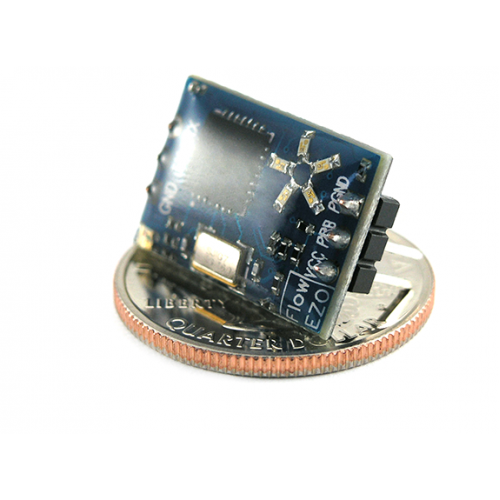

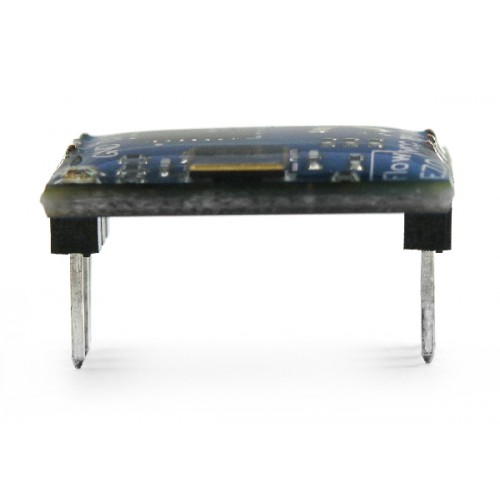

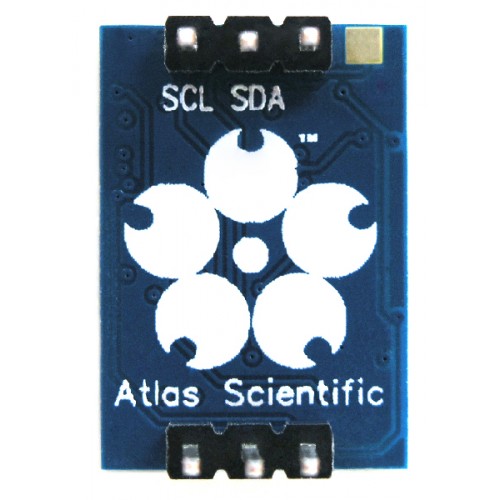

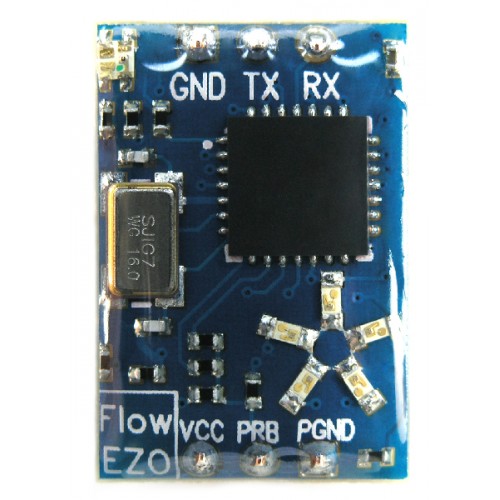

Atlas Scientific EZO Embedded Flow Meter Totalizer

Product Code: AS EZO-FLOW

Atlas Scientific EZO Embedded Flow Meter Totalizer
Atlas Scientific EZO Embedded Flow Meter Totalizer
Atlas Scientific EZO Embedded Flow Meter Totalizer
Atlas Scientific EZO Embedded Flow Meter Totalizer

₹5,059.00
GST inclusive



Qty:

Availability: 1 In Stock


Add to Wish List



Reading the signal from a flow meter is easy; until you actually try and do it. A few missed pulses here and there leads to massive inaccuracies over a relatively short time. To accurately read and totalize flow rate, a subsystem must be used that has been specifically designed to do just that (hint don’t use your CPU to totalize flow; it’s busy doing other things).

The EZO-Flow can read be used with your own pulsed D.C. flow meter, or it can be connected to one of the flow meters we offer.

Specification

Reads Total flow and flow rate
Preprogrammed Works with all Atlas Scientific flow meters
Programmable Can work with most off-the-shelf flow meters
Visual display Real time turbine rotation
Data protocol UART & I2C
Default I2C address 104 (0x68)
Operating voltage 3.3V − 5V
Data format ASCII
Circuit dimensions 13.97mm x 20.16mm (0.55″ x 0.79″)
Weight: 1.76 grams

Related Documents

 EZO™ Embedded Flow Meter Totalizer Datasheet

 Wiring Diagram

 Arduino Uno Sample Code

 Arduino Mega Sample Code

 Arduino I²C Sample Code

 Raspberry Pi Sample Code (UART, I²C, USB)

 UART and I2C mode switching

 EZO Flow CAD Footprint File (*.dxf)

 RoHS Certificate

 CE Certificate
