AlphaNum R click
Product Code: MIKROE-1864
Description

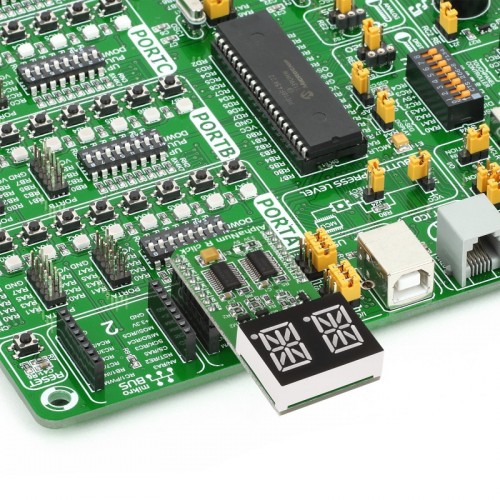

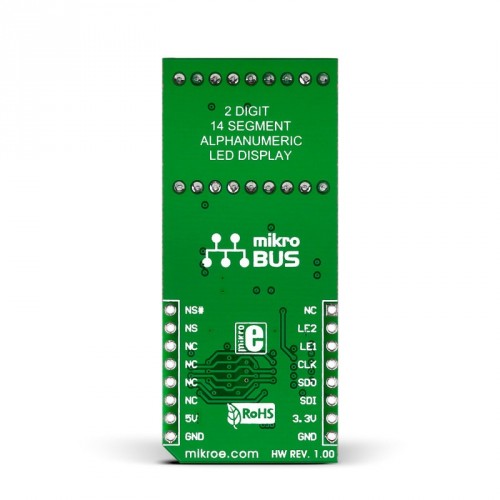

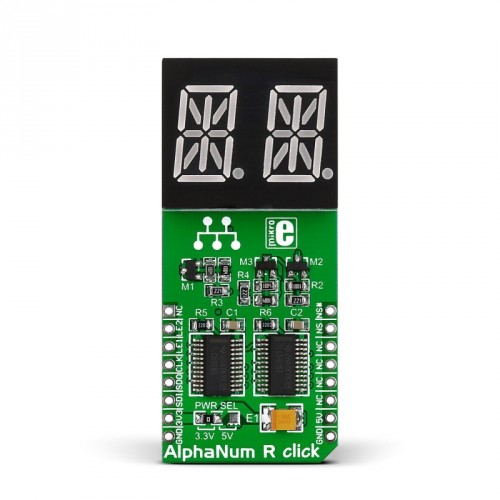

AlphaNum click is a simple solution for adding 14-segment alphanumeric display to your device. The board carries two TLC5926 16-bit Constant-Current LED sink Drivers as well as a dual character red LED 14-segment display (with two additional segments for commas). AlphaNum click communicates with the target board through mikroBUS RST, CS, SCK, MISO, MOSI, PWM and INT pins (marked here as LE2, LE1, CLK, DOUT, DIN, NUMSEL and NUMSEL# respectively). The board is designed to use either a 3.3V or 5V power supply.
Specification
| Type | LED Segment |
| Applications | 14-segment displays, also known as starburst displays, are capable of legibly rendering the ISO Latin alphabet |
| On-board modules | Two TLC5926 16-bit Constant-Current LED sink Drivers. dual character red LED 14-segment display |
| Key Features | Two additional segments for commas |
| Key Benefits | Suitable for displaying both letters and digits. Clear and legible LED display |
| Interface | GPIO,SPI |
| Input Voltage | 3.3V or 5V |
| Compatibility | mikroBUS |
| Click board size | L (57.15 x 25.4 mm) |
