8x8 B click

Product Code: MIKROE-1307

Brand: MikroElektronika

0 reviews | Write a review

₹1,889.00

GST inclusive

Qty:

Availability: Backorder

Add to Wish List

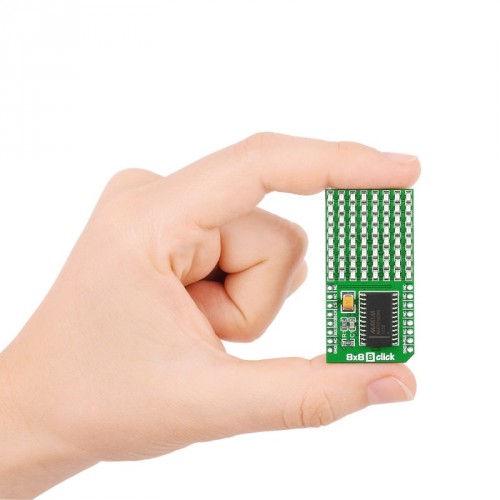

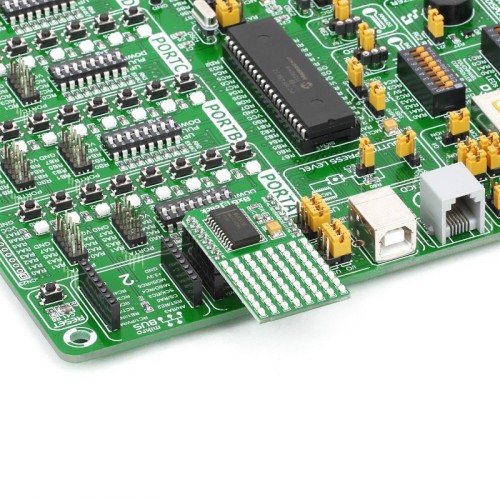

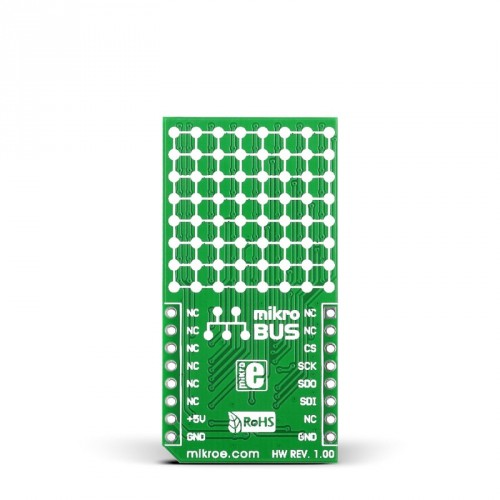

8x8 B Click is an add-on board in mikroBUS form factor. It’s a compact and easy solution for adding 8x8 BLUE LED display matrix to your design. It features MAX7219 8-digit LED display driver module as well as 64 BLUE LED diodes. 8x8 B Click communicates with target board microcontroller via four mikroBUS SPI lines (DIN, DOUT, CLK and CS). The board is designed to use 5V power supply only, but it can be used with 3.3V MCUs as well.

Specification

Type	LED Matrix
Applications	8x8 B Click™ brings serial 8x8 BLUE LED display matrix to your design
On-board modules	MAX7219 8-digit LED display driver
Key Features	On-chip BCD code-B decoder
Key Benefits	MAX7219 is simple to control and has integrated LED driver
Interface	SPI
Input Voltage	5V,5V
Compatibility	mikroBUS
Click board size	M (42.9 x 25.4 mm)

Downloads

8x8 click Examples

8x8 B click User Manual
