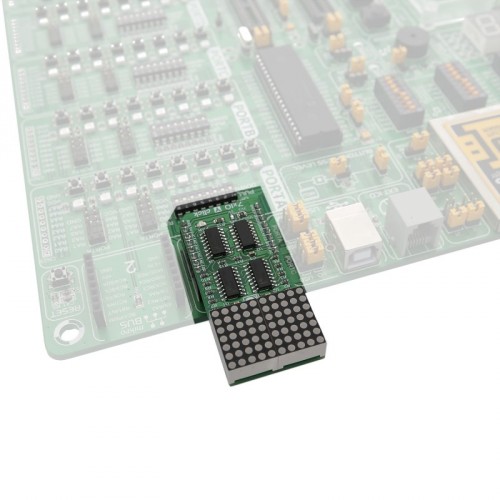

7x10 Y click

How the click works

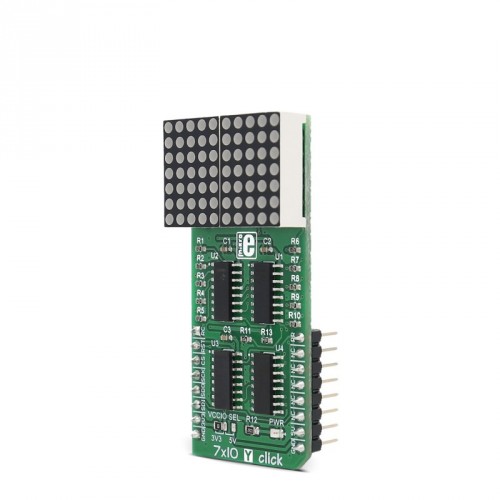

7x10 Y click is essentially a dual character display capable of showing letters, numbers, and characters in more readable typefaces since the 7x5 resolution is the standard one for displaying ASCII characters. This type of resolution is more readable than the 14-segment display.


The dot matrix can also show scrolling text, thus fitting longer messages in small space. Two 74HC595 8-bit shift registers are used for driving the columns of the LED matrix separately. The 74HC595 is a 8-bit, serial-in, parallel-out shift register. The rows of the LED are connected to the decoded outputs of CD4017 through ULN2003. CD4017 is a 5-stage Johnson counter and ULN2003 is a high-voltage, high-current Darlington transistor array. The Johnson counter (CD4017) performs the necessary LED multiplex and the current amplification that's needed for driving the LEDs is performed by a Darlington Transistor array.

Specifications

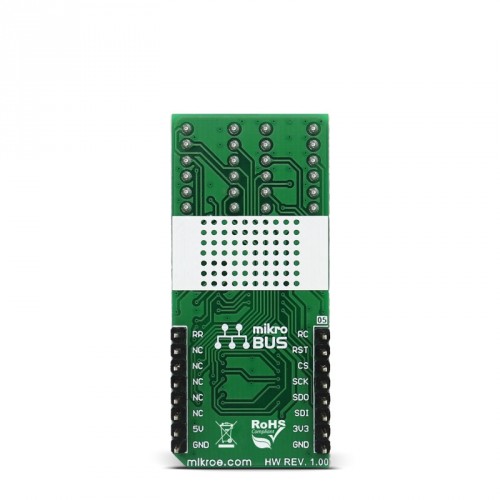

Pinout diagram

This table shows how the pinout on 7x10 Y click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

Notes	Pin					Pin	Notes
CD4017 clock pin	RC	1	AN	PWM	16	RR	CD4017 reset pin
74HC595 reset	RST	2	RST	INT	15	NC
Latch of 74HC595	CS	3	CS	TX	14	NC
SPI clock pin	SCK	4	SCK	RX	13	NC
SPI slave data out pin	SDO	5	MISO	SCL	12	NC
SPI slave data in pin	SDI	6	MOSI	SDA	11	NC
Power supply	+3.3V	7	3.3V	5V	10	+5V	Power supply
Ground	GND	8	GND	GND	9	GND	Ground

Jumpers and settings

JP1 - this jumper allows you to select the logic level voltage for the communication lines and power supply voltage. If it's in the left position then the logic level voltage and power supply from the mikroBUS™ is 3.3V. If the jumper is in the right position the logic level voltage and power supply from the mikroBUS™ is 5V. Jumper J1 is soldered in 3.3V position by default.

Maximum ratings

LEDs, Buttons, Switches, Connectors, etc.

Software Support

We provide a library for the 7x10 Y click on our LibStock page, as well as a demo application (example), developed using MikroElektronika compilers. The demo application can run on all the main MikroElektronika development boards.

Note: You can use our free supporting software - GLCD Font Creator, and make personalized fonts, symbols, and icons for the LED matrix onboard the click. Create fonts and symbols from scratch, or by importing existing fonts on your system. It lets you modify and adjust them for your needs, apply effects and finally export them as source code for use in mikroC, mikroBasic or mikroPascal compilers.

Library Description

The library carries all functions necessary for complete control over the 7x10 Y click. There is also an additional font header file which carries 5x7 letter definitions.

Key functions

• bool c7x10y_refreshDisplay( void ) - Refreshes the display; this function should be called upon as frequently as possible.
• void c7x10y_drawPixel( uint8_t row, uint8_t col )- Draws single pixel on the desired location.

• void c7x10y_drawText( char *text )- Writes the text; The first character is placed on the first LED matrix, and the second one is placed on the second LED matrix (if a there is more than one character).

The example also carries additional functions for GPIO control which are provided during driver initialization. These functions are necessary and the implementation depends on the type of development system that is used.

Examples Description

The application is composed of three sections :

• System Initialization - Initializes GPIO and SPI peripheral
• Application Initialization - Default driver initialization
• Application Task - (code snippet) a demonstration of the main functions of the library. First, the text "MikroElektronika" is scrolled, then the countdown from 0 to 30. And finally random lighting up of the LEDs - using the function c7x10y_drawPixel.

void applicationTask()
{
    bool ind;
    static bool called = false;
    int i, j;
    c7x10y_clearDisplay();

    if ( !called )
    {
        c7x10y_drawText( "  Mikro Elektronika" );
        c7x10y_scrollEnable( _C7X10Y_SPEED_MED );
        called = true;
    }
    do
    {
        ind = c7x10y_refreshDisplay();
        c7x10y_tick();
        Delay_ms( 10 );

    } while( ind );
    called = false;

    for( i = 0; i < 11; ++i )
    {
        c7x10y_clearDisplay();
        c7x10y_drawNumber( i );
        for( j = 0; j < 30; ++j )
        {
            c7x10y_refreshDisplay();
            Delay_ms( 10 );
        }
    }

    // draws a few pixels
    c7x10y_clearDisplay();
    c7x10y_drawPixel( 6, 3 );
    c7x10y_drawPixel( 6, 8 );
    c7x10y_drawPixel( 2, 3 );
    c7x10y_drawPixel( 2, 8 );
    for( j = 0; j < 100; ++j )
    {
        c7x10y_refreshDisplay();
        Delay_ms( 10 );
    }

}

The full application code and libraries are available for download on our LibStock page.

Downloads

 Learn: 7x10 LEDs, magic vision

 7x10 Y click schematic

 LibStock: 7x10 Y click library

 CD4017 datasheet

 ULN2003 datasheet

 74HC595 datasheet
