Description

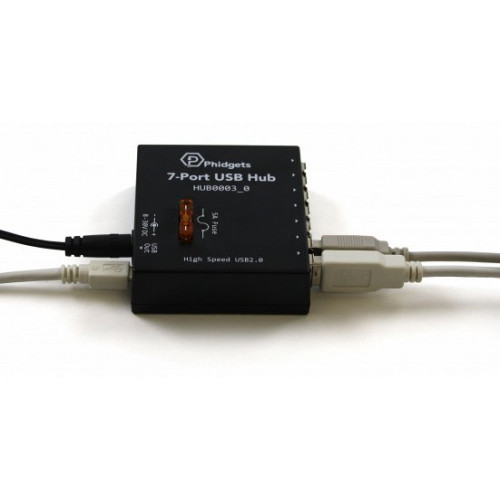

This powered 7-port USB 2.0 hub is ideal for projects that use multiple USB Phidgets.
So many USB devices, so few ports. With this USB hub for your VINT SBC, you'll have access to seven high-speed USB 2.0 ports. You can also use this USB Hub directly from your computer, if you just want an awesome USB 2.0 powered hub to keep all of your Phidgets happy.
Because we know you're going to be plugging all sorts of power-hungry devices into this hub, we've made it externally powered by a power supply of 8 to 30 volts. That means you're not limited to the amount of power that this hub gets from the upstream USB connection.
Product Specifications
Board Properties | |
---|---|
Controlled By | USB |
USB Hub | |
Number of USB Ports | 7 |
Available Current per USB Port | 500 mA |
USB Speed | High Speed |
Electrical Properties | |
Supply Voltage Min | 8 V DC |
Supply Voltage Max | 30 V DC |
Current Consumption Min | 100 mA |
Current Consumption Max | 3 A |
Physical Properties | |
Power Jack | 5.5 x 2.1mm Center Positive |
Operating Temperature Min | 0 °C |
Operating Temperature Max | 70 °C |
