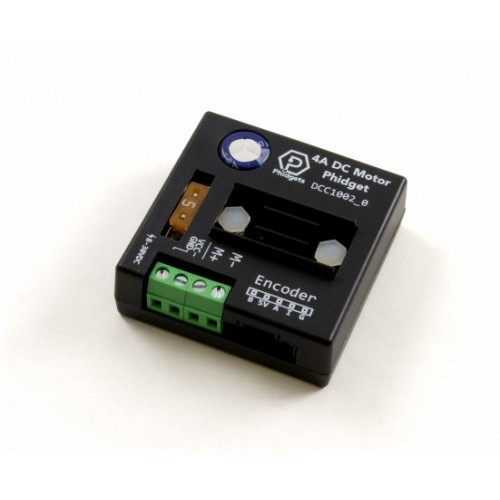

4A DC Motor Phidget
Product Code: Phidgets DCC1002_0
Description
Control a single DC motor up to 4A with this compact and affordable Phidget. Connects to a VINT port.
The DCC1002 gives you complete control of one medium to large DC motor from one of the ports on your VINT hub. You can control motor velocity, acceleration and braking strength using commands from your software. The compact and enclosed form factor of the DCC1002 makes it easy for this Phidget to fit in smaller projects while still controlling motors with current ratings of up to 4 amps. See the Connection & Compatibility tab for a list of devices with VINT ports that can connect to this Phidget.
Quadrature Encoder Input
This controller comes equipped with an encoder input that can read in the quadrature signal from an encoder attached to the shaft of your motor. Using the MotorPositionController object in our API, you can use the encoder to implement a PID control loop.
Reliability and Protection

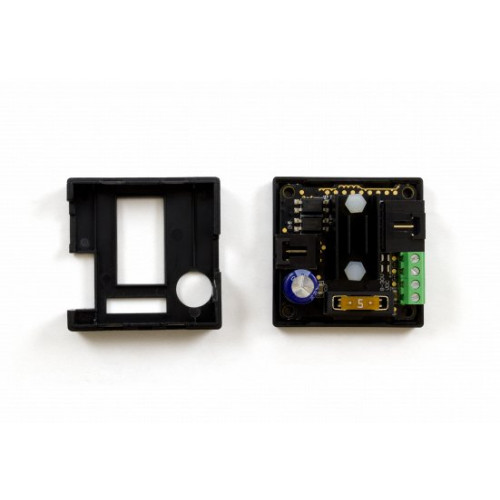

A built in heatsink on this controller prevents it from overheating during operation.
The VINT port on this device is isolated from the rest of the board, greatly improving reliability and eliminating ground loops. Your VINT Hub and computer will also be safe in the event of a current spike coming back from the motor.
The power terminals on this device are polarity protected: if you happen to hook up the power supply backwards, the device simply won't power up and won't be damaged. There is also a 5A fuse included on-board to protect the controller in an over-current event.
Product Specifications
| Board Properties | |
|---|---|
| Controlled By | VINT |
| Controller Properties | |
| Motor Type | DC Motor |
| Number of Motor Ports | 1 |
| Acceleration Min | 0.1 % Duty Cycle/s |
| Acceleration Max | 100 % Duty Cycle/s |
| PWM Frequency | 25 kHz |
| Sampling Interval Min | 100 ms/sample |
| Sampling Interval Max | 60 s/sample |
| Acceleration Resolution | 0.1 Duty Cycle/s |
| Velocity Resolution | 0.001 Duty Cycle |
| Current Limit Resolution | 5.6 mA |
| Acceleration Time Min | 20 ms |
| Acceleration Time Max | 20 s |
| Electrical Properties | |
| Continuous Motor Current Max | 4 A |
| Supply Voltage Min | 8 V DC |
| Supply Voltage Max | 30 V DC |
| Current Consumption (Unconfigured) | (VINT Port) 500 μA |
| Current Consumption Max | (VINT Port) 2 mA |
| Power Consumption (Unconfigured) | 288 mW |
| Power Consumption | motor power plus 700 mW |
| Encoder Interface | |
| Number of Encoder Inputs | 1 |
| Encoder Interface Resolution | x4 |
| Count Rate Max | 400000 pulses/s |
| Sampling Interval Min | 50 ms/sample |
| Sampling Interval Max | 60 s/sample |
| Encoder Input Low Voltage Max | 2.4 V DC |
| Encoder Input High Voltage Min | 2.6 V DC |
| Time Resolution | 1 μs |
| Physical Properties | |
| Recommended Wire Size | 16 - 26 AWG |
| Operating Temperature Min | -40 °C |
| Operating Temperature Max | 85 °C |
