10W Super Bright LED - RGB

Product Code: DFR FIT0381

10W Super Bright LED - RGB
10W Super Bright LED - RGB
10W Super Bright LED - RGB
10W Super Bright LED - RGB
10W Super Bright LED - RGB
10W Super Bright LED - RGB
Brand: DF Robot

₹979.00
GST inclusive



Qty:

Availability: 1 In Stock


Add to Wish List



INTRODUCTION

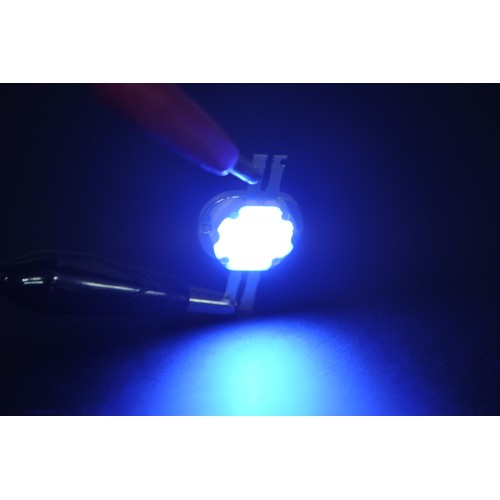

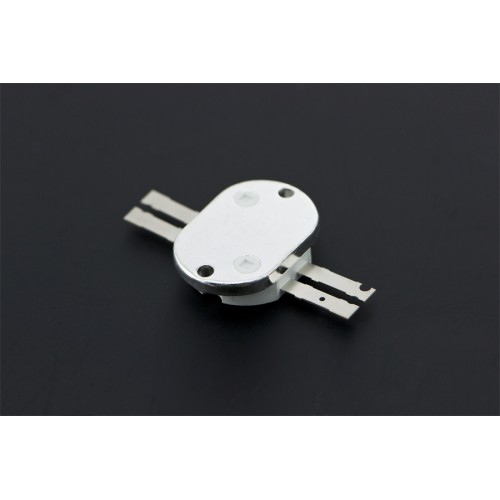

This 10W super bright LED can be used as a flash searchlight for your robot projects. It consists of 9 separate LEDs and has a luminance of 500LM. Comes in various colors.

Warning: If you use the full power, LED will be very hot. Please use Heat Sink to cool it down.

SPECIFICATION

  • Rated Power: 10W
  • Luminance: Red: 110, Green: 165, Blue: 45
  • Working Voltage: Red: 6V-7V, Green: 9V-11V, Blue: 9V-11V(With Heat Sink) Red: 5V-5.5V, Green:7.5V-8.5V, Blue:7.5V-8.5V(Without Heat Sink)
  • Rated Current: Red: 400mA, Green: 350mA, Blue: 350mA
  • Color Temperature: 3000K-4000K
  • Angle: 105°
  • Working Temperature: -20°C ~ 60°C
  • Reserving Temperature: -20°C ~ 60°C
  • Size: 38mm*23mm
  • Weight: 10g

DOCUMENTS

SHIPPING LIST

  • Super Bright LED - RGB x1
