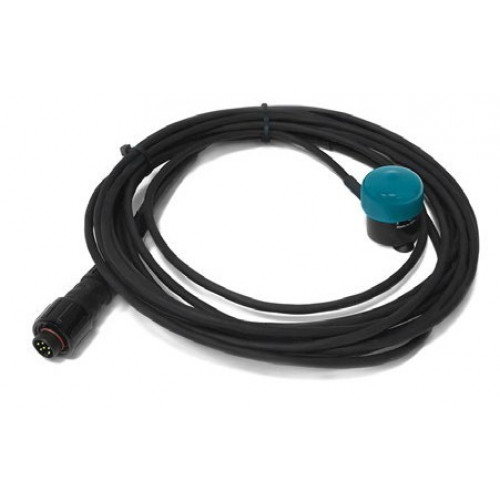

Solar Radiation sensor probe

Sensor specifications (SQ-110)

Sensibility: 0.200 mV / μmol·m-2s-1

Calibration factor: 5 μmol·m-2s-1 / mV

Non-linearity: < 1% (up to 4000 μmol·m-2s-1 / mV)

Non-stability (long-term drift): <2% per year

Spectral range: 410 ~ 655 nm

Accuracy: ±5%

Repeatability: <1%

Diameter: 2.4 cm

Height: 2.8 cm

Cable length: 5 m of shielded, twisted-pair wire

Operation temperature: -40 ~ 70 ºC

Operation humidity: 0 ~ 100% RH

The SQ-110 sensor, specifically calibrated for the detection of solar radiation, provides at its output a voltage proportional to the intensity of the light in the visible range of the spectrum, a key parameter in photosynthesis processes. It presents a maximum output of 400 mV under maximum radiation conditions. In order to improve the accuracy of the reading, this is carried out through a 16 bits analog-to-digital converter that communicates with the microprocessor of the mote through the I2C.

Sensor specifications (SU-100)

Sensibility: 0.2 mV / μmol·m-2s-1

Calibration factor: 5.0 μmol·m-2s-1 / mV

Non-stability (long-term drift): <3% per year

Non-linearity: <1% (up to 300 μmol·m-2s-1)

Spectral range: 250 ~ 400 nm

Accuracy: ±10%

Repeatability: <1%

Diameter: 2.4 cm

Height: 2.8 cm

Cable length: 5 m shielded, twisted-pair wire

Operation temperature: -40 to 70 ºC
