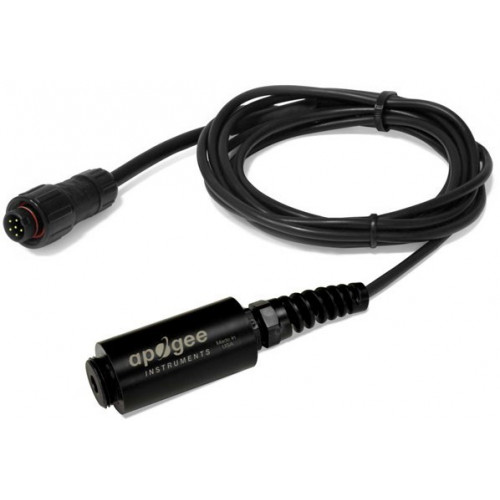

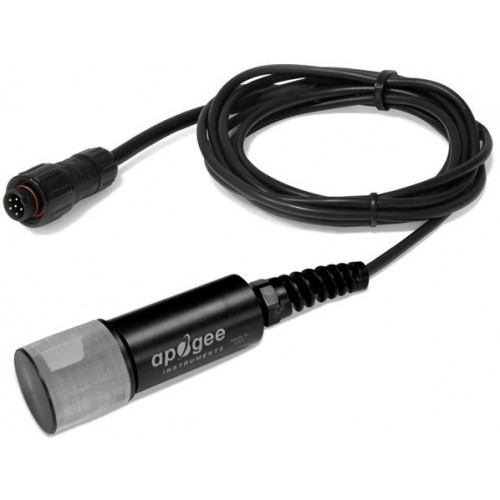

Soil oxygen level sensor probe
Oxygen is the second major constituent of Earth’s atmosphere and it is crucial for the development of life. There are sensors which measures oxygen in 2 states: dissolved in a solution and in a gaseous state. The Soil oxygen level sensor probe measures gaseous oxygen.
The Soil oxygen level sensor probe consists of a galvanic cell type sensor and offers a measure of the percentage of the total number of molecules of oxygen in the air. This sensor is specially designed for use in soil or porous media.
Specifications
-
Operating environment: -20 to 60 ºC; 60 to 114 kPa
-
Operation humidity: 0 ~ 100% RH (non-condensing)
-
Measurement range: 0 to 100 % O2
-
Measurement repeatability: Less than 0.1 % of mV output at 20.95 % O2
-
Non-linearity: Less than 1 %
-
Long-term drift (Non-stability): 1.0 mV per year
-
Oxygen consumption rate: 2.2 µmol O2 per day at 20.95 % O2 and 23 ºC
-
Response time: 60 s
-
Dimensions: 32 mm diameter, 68 mm length
-
Cable: 5 m
