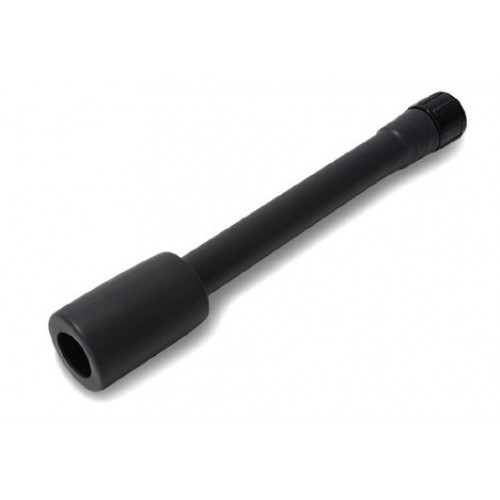

Nitric Oxide (NO) Gas Sensor Probe for low concentrations [Calibrated]

Specifications

Gas: NO

Sensor: NO-A4

Performance Characteristics

Nominal Range: 0 to 18 ppm

Maximum Overload: 50 ppm

Long Term Sensitivity Drift: < 20% change/year in lab air, mont

Long Term zero Drift: 0 to 50 ppb equivalent change/year in lab

Response Time (T90): ≤ 25 seconds

Sensitivity: 350 ± 550 nA/ppm

Accuracy: as good as ±0.2 ppm* (ideal conditions)

Operation Conditions

Temperature Range: -30 ºC to 50 ºC

Operating Humidity: 15 to 85% RH non-condensing

Pressure Range: 80 to 120 kPa

Storage Temperature: 0 ºC to 20 ºC

Expected Operating Life: 2 years in air

Average consumption: less than 1 mA

* Accuracy values are only given for the optimum case.
