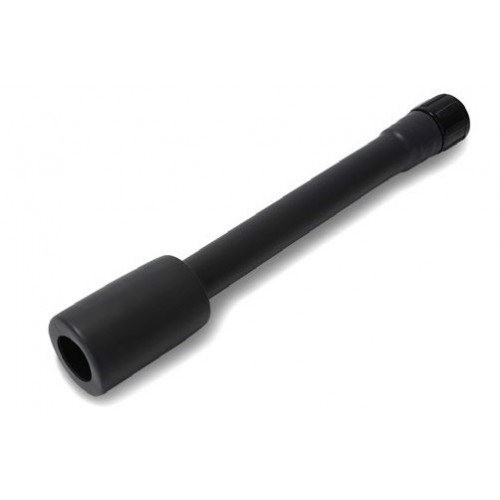

Carbon Monoxide (CO) Gas sensor probe for high concentrations [Calibrated]

Specifications

Gas: CO

Sensor: 4-CO-500

Performance Characteristics

Nominal Range: 0 to 500 ppm

Maximum Overload: 2000 ppm

Long Term Output Drift: < 2% signal/month

Response Time (T90): ≤ 30 seconds

Sensitivity: 70 ± 15 nA/ppm

Accuracy: as good as ±1 ppm* (ideal conditions)

Operation Conditions

Temperature Range: -20 ºC to 50 ºC

Operating Humidity: 15 to 90% RH non-condensing

Pressure Range: 90 to 110 kPa

Storage Temperature: 0 ºC to 20 ºC

Expected Operating Life: 5 years in air

Average consumption: less than 1 mA

Accuracy values are only given for the optimum case.
